Port Configuration
3-111
3
Web – Click Port, Port Statistics. Select the required interface, and click Query. You
can also use the Refresh button at the bottom of the page to update the screen.

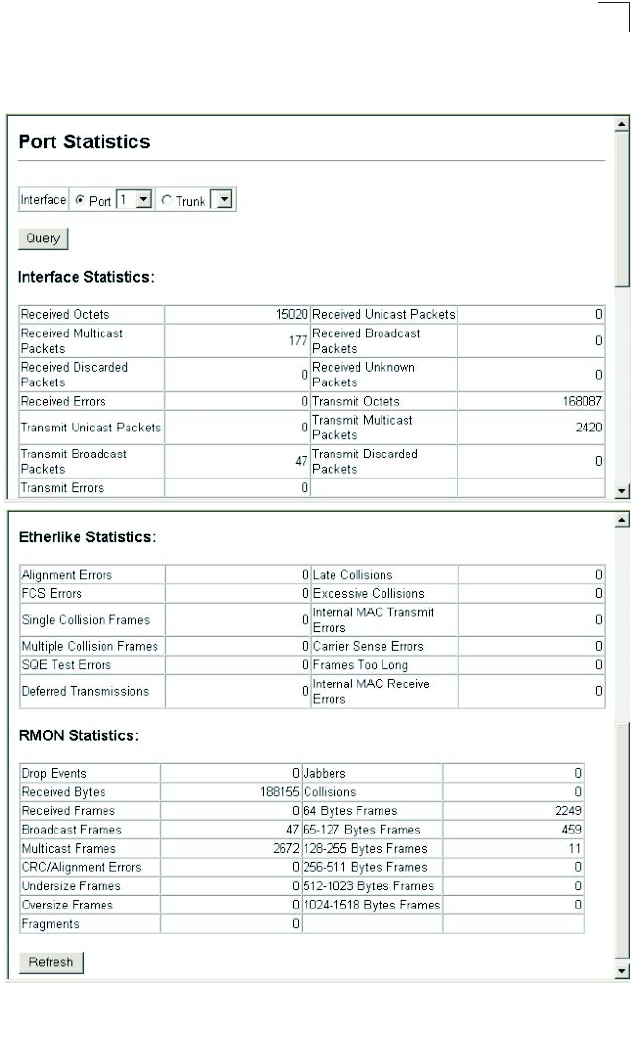

Figure 3-64 Port Statistics
